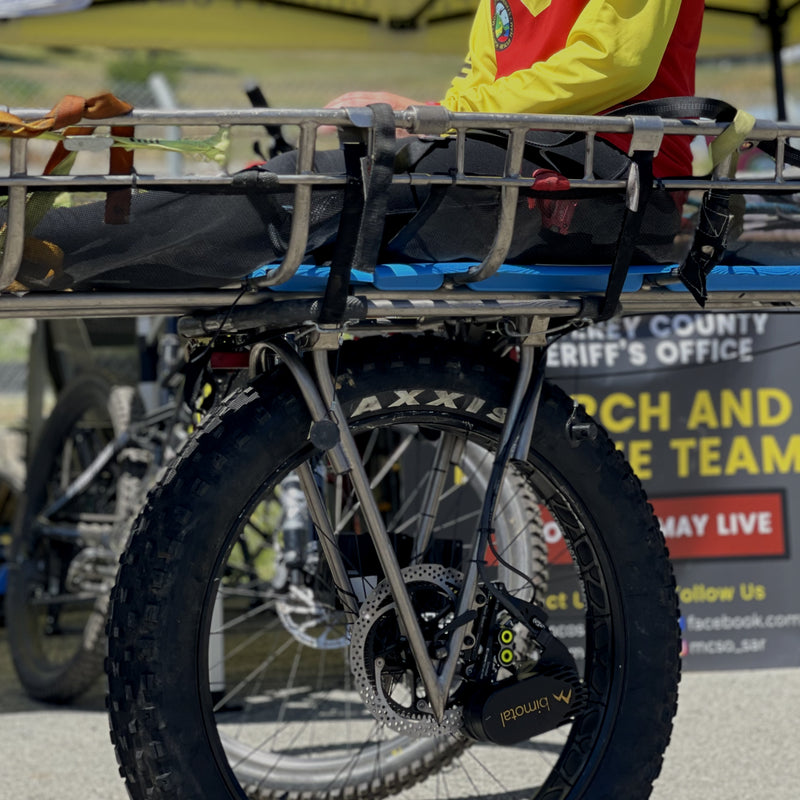

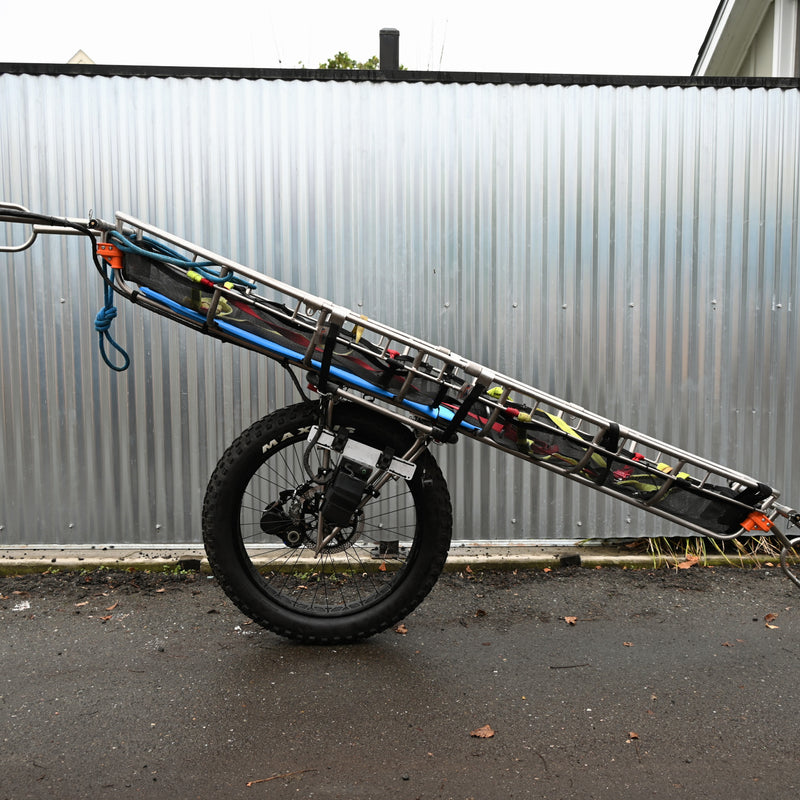

Elevate motor used on a search and rescue litter SAR stokes

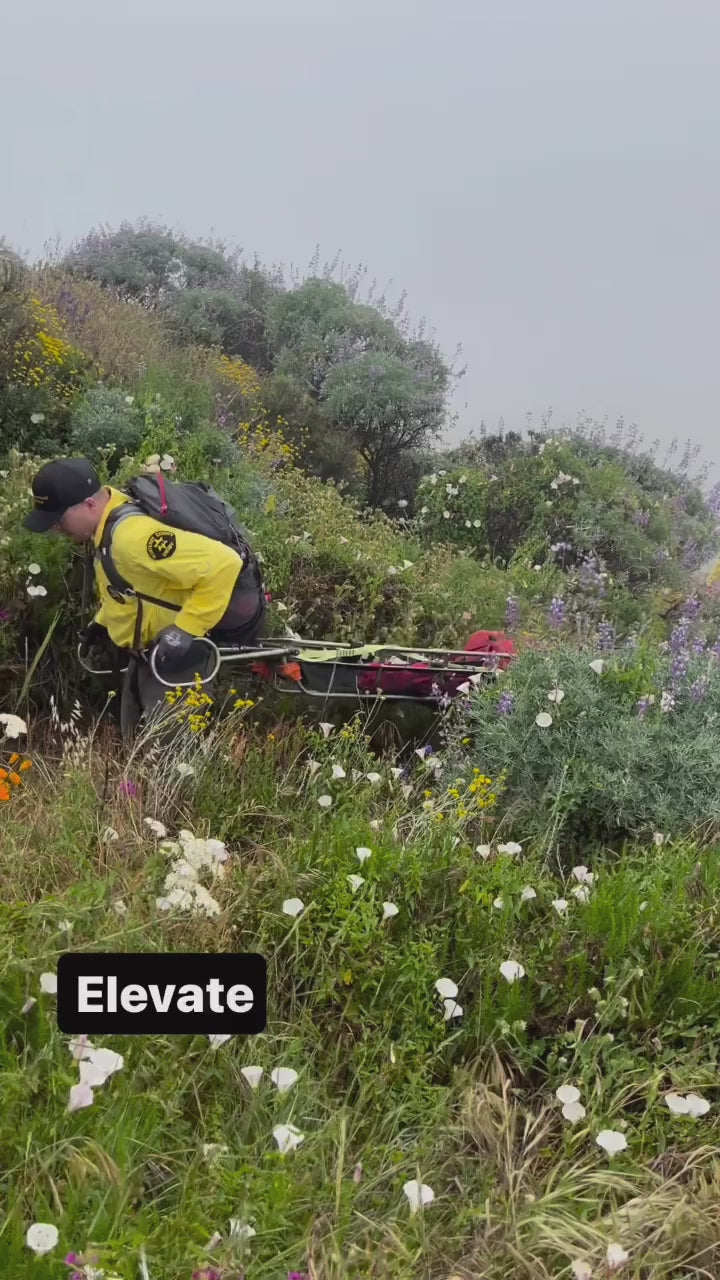

Electric search and rescue kit review

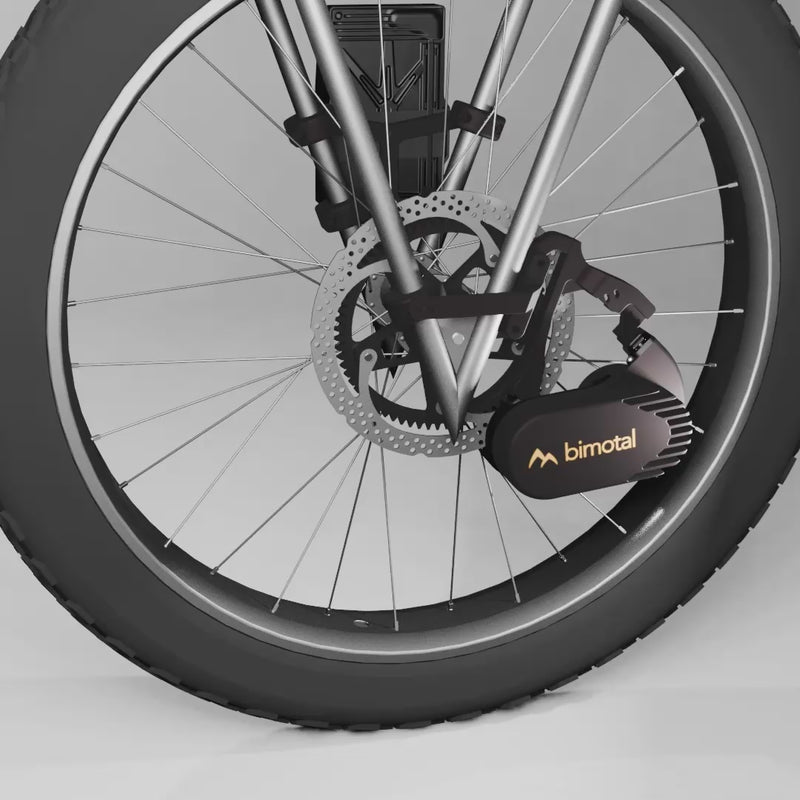

3D CAD spin of Elevate on SAR litter
Elevate motor used on a search and rescue litter SAR stokes

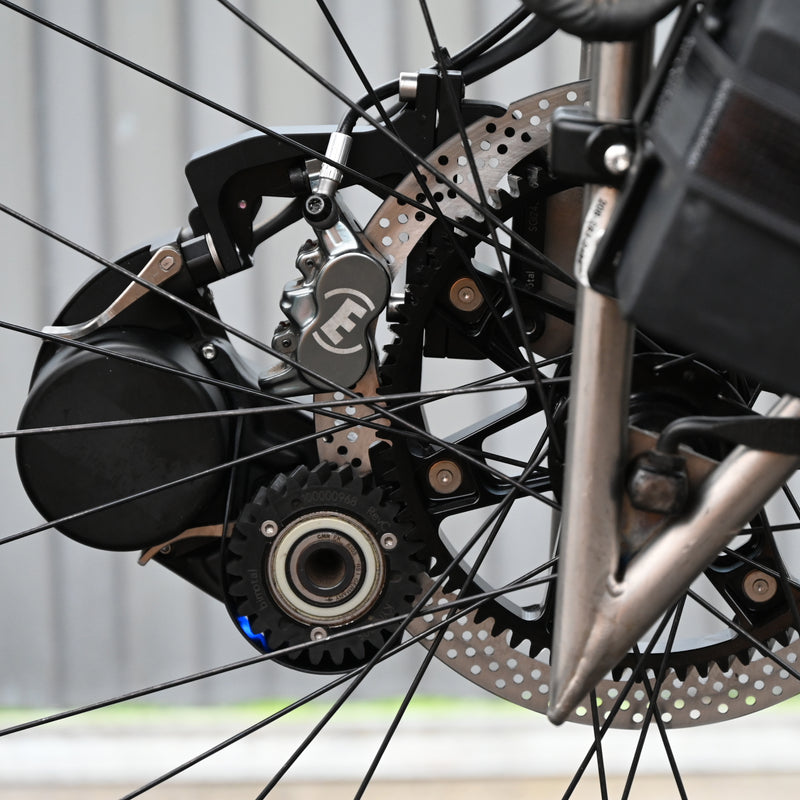

Elevate Gear Mesh Close Up on search and rescue application

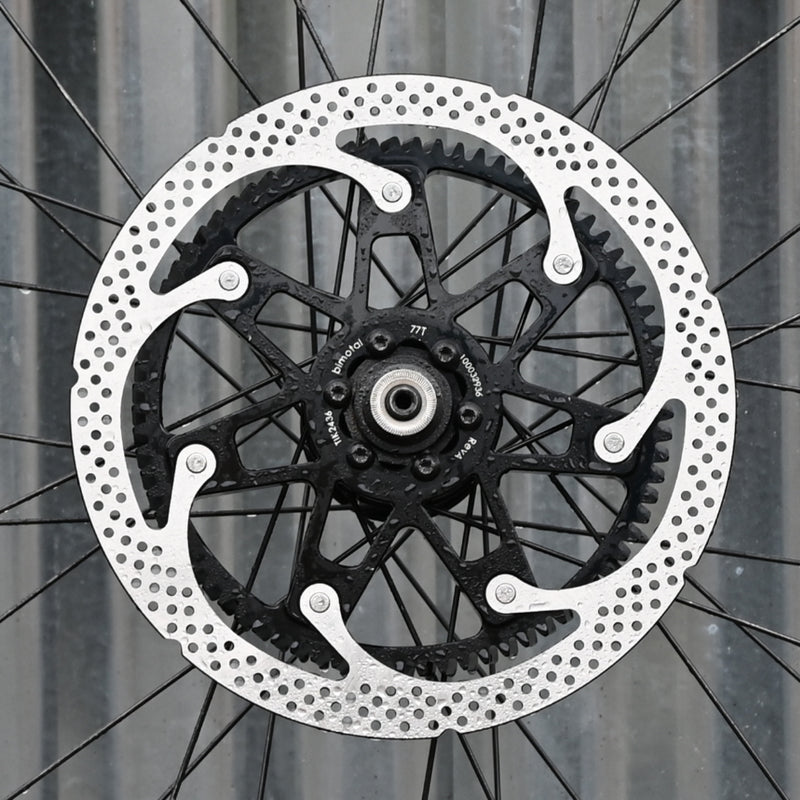

Bimotal Elevate Disc Brake Gear

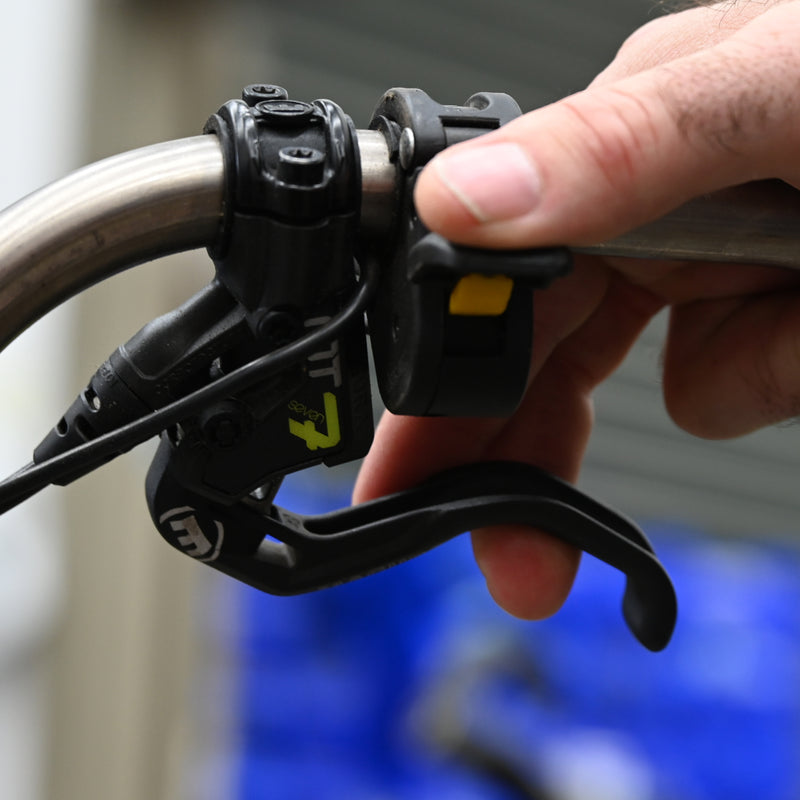

Elevate throttle for search and rescue application
Bimotal Elevate Mobile App Modes

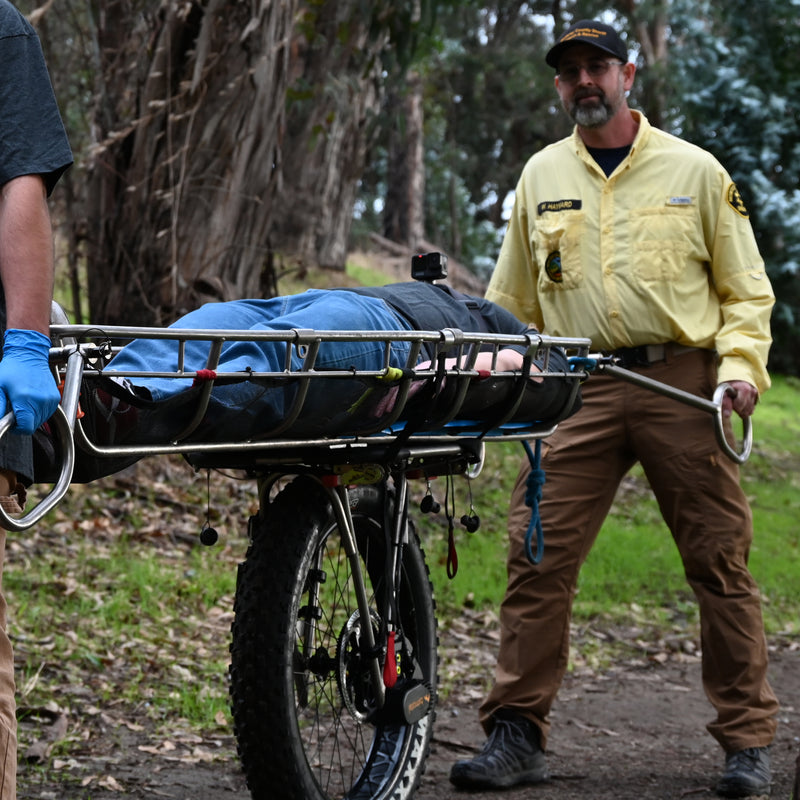

Bimotal Elevate search and rescue field testing

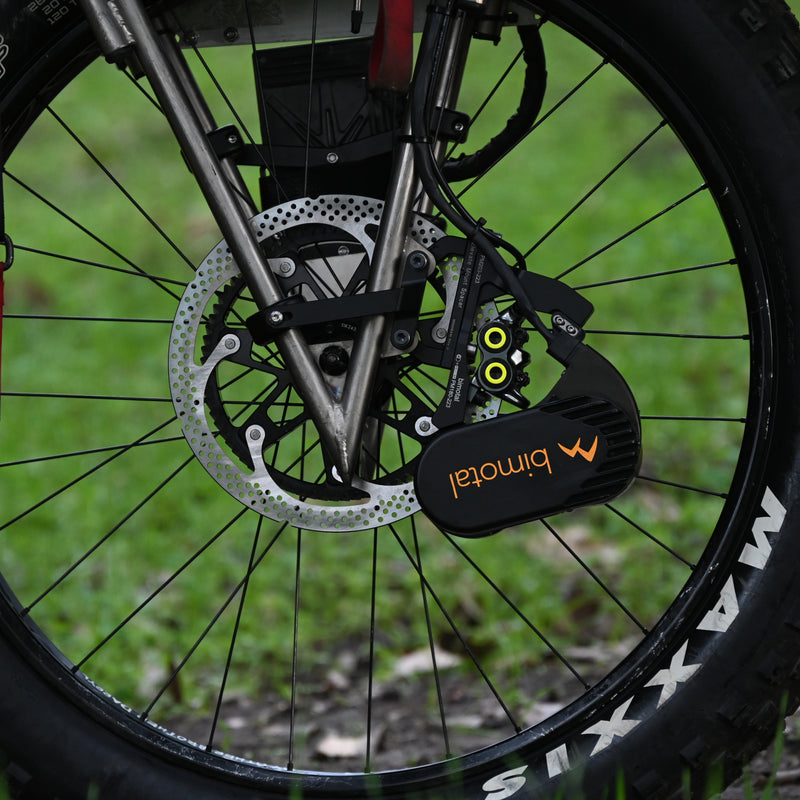

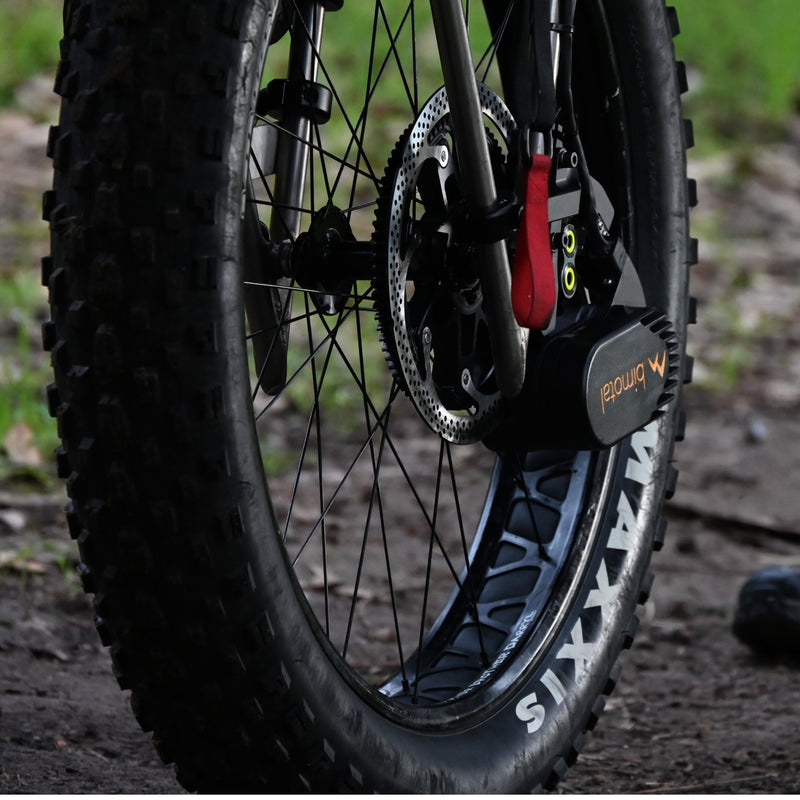

Close up of Elevate motor mounted on a search and rescue litter
Close up of Elevate motor mounted on a search and rescue litter

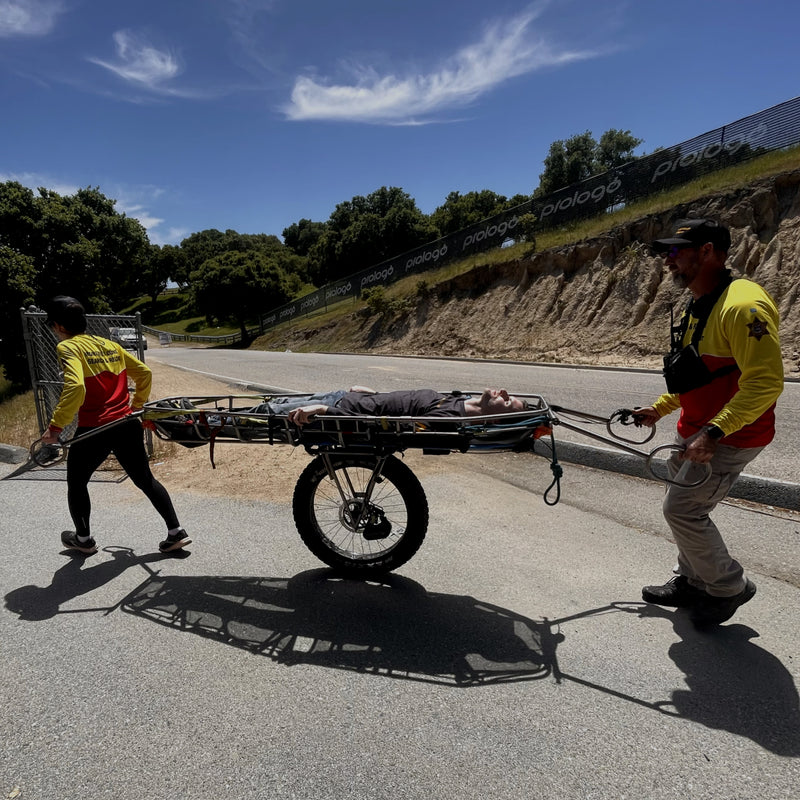

Powered search and rescue litter -01

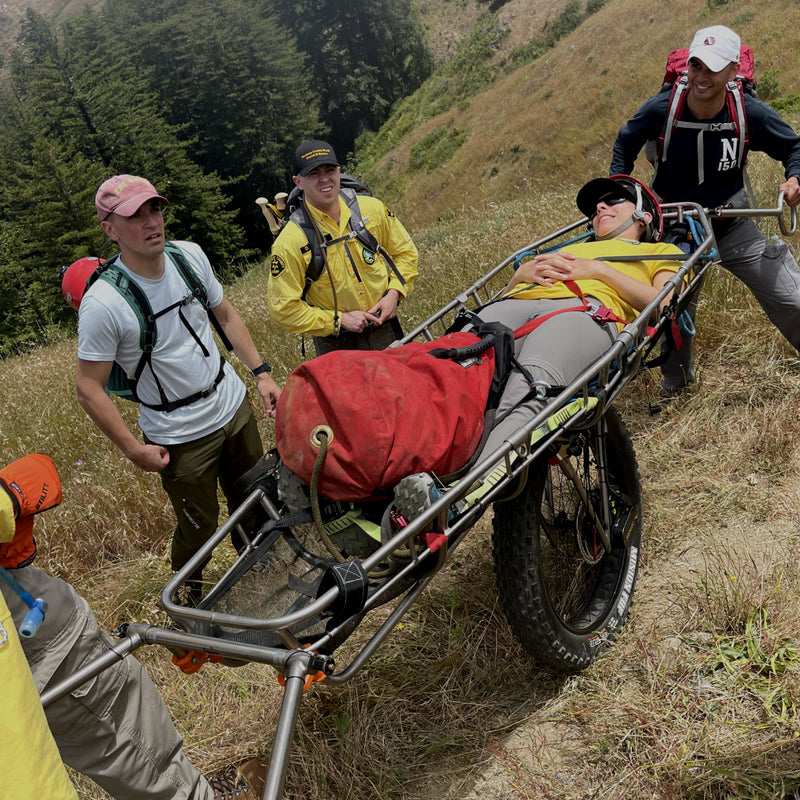

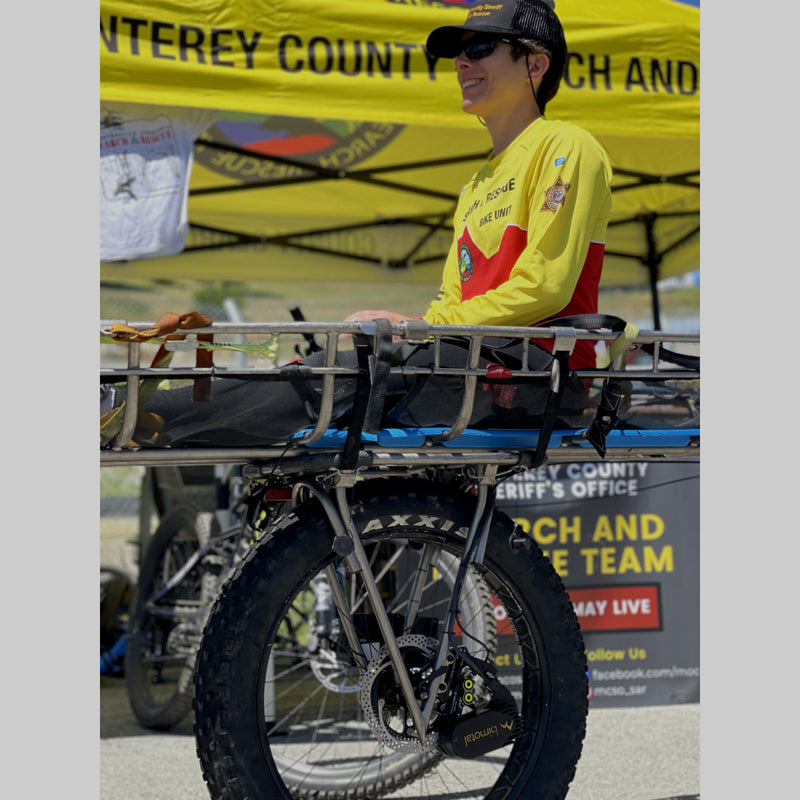

Powered search and rescue litter
Powered search and rescue litter

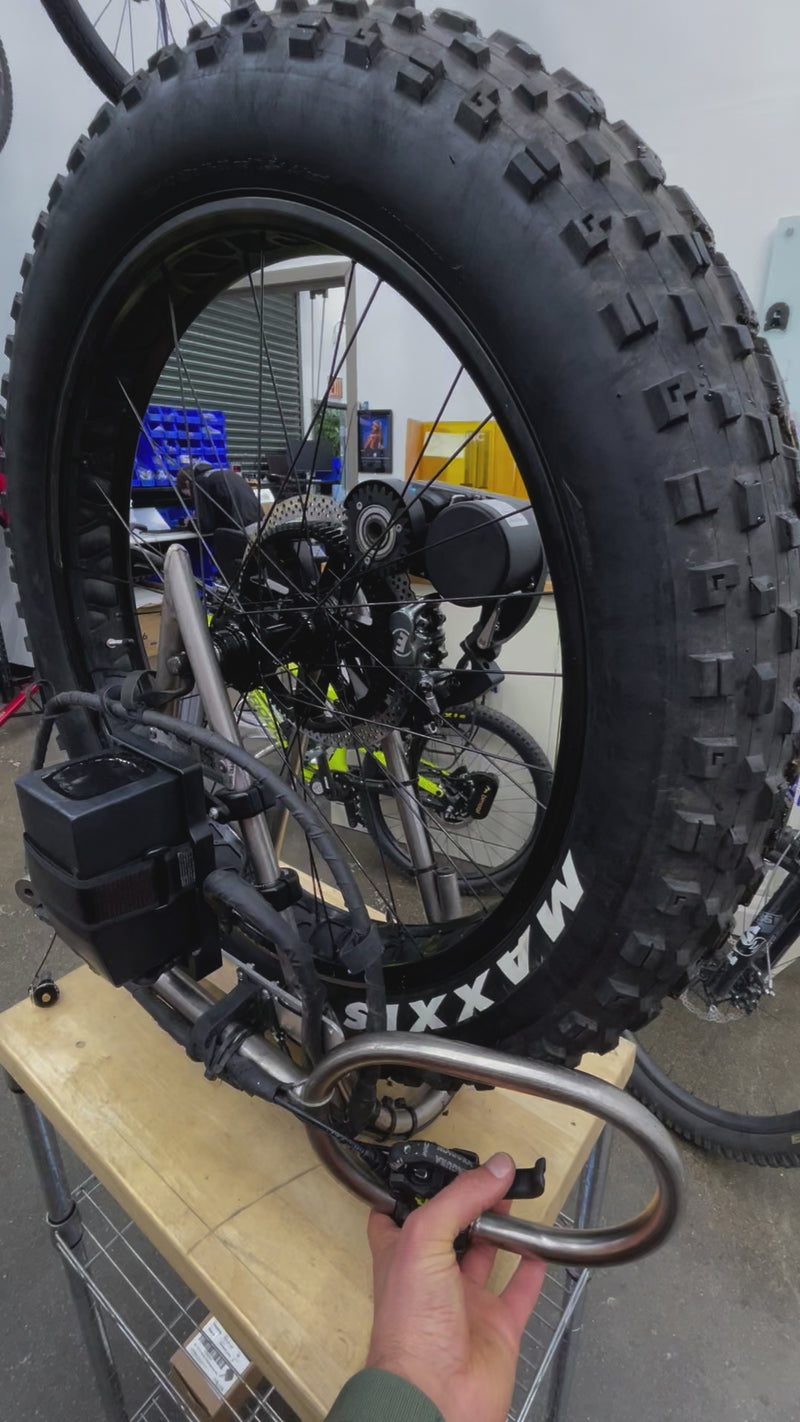

Demo of motorized search and rescue litter
Elevate motor used on a search and rescue litter SAR stokes
Electric search and rescue kit review
3D CAD spin of Elevate on SAR litter
Elevate motor used on a search and rescue litter SAR stokes
Elevate Gear Mesh Close Up on search and rescue application
Bimotal Elevate Disc Brake Gear
Elevate throttle for search and rescue application
Bimotal Elevate Mobile App Modes
Bimotal Elevate search and rescue field testing
Close up of Elevate motor mounted on a search and rescue litter
Close up of Elevate motor mounted on a search and rescue litter
Powered search and rescue litter -01
Powered search and rescue litter
Powered search and rescue litter
Demo of motorized search and rescue litter

Elevate Search and Rescue Motor System

$ 2,695

SKU
  • Please note this kit has a lead time and ships in 4-8 weeks
  • All SAR systems are shipped with a 223 mm rotor gear for maximum torque
  • SAR system is compatible with The Terra Tamer Wheel
What's Included
Drive Unit
400W / 70Nm
Battery Pack + Charger
300Wh capacity
SAR Mounting Brackets
Custom CNC machined brackets

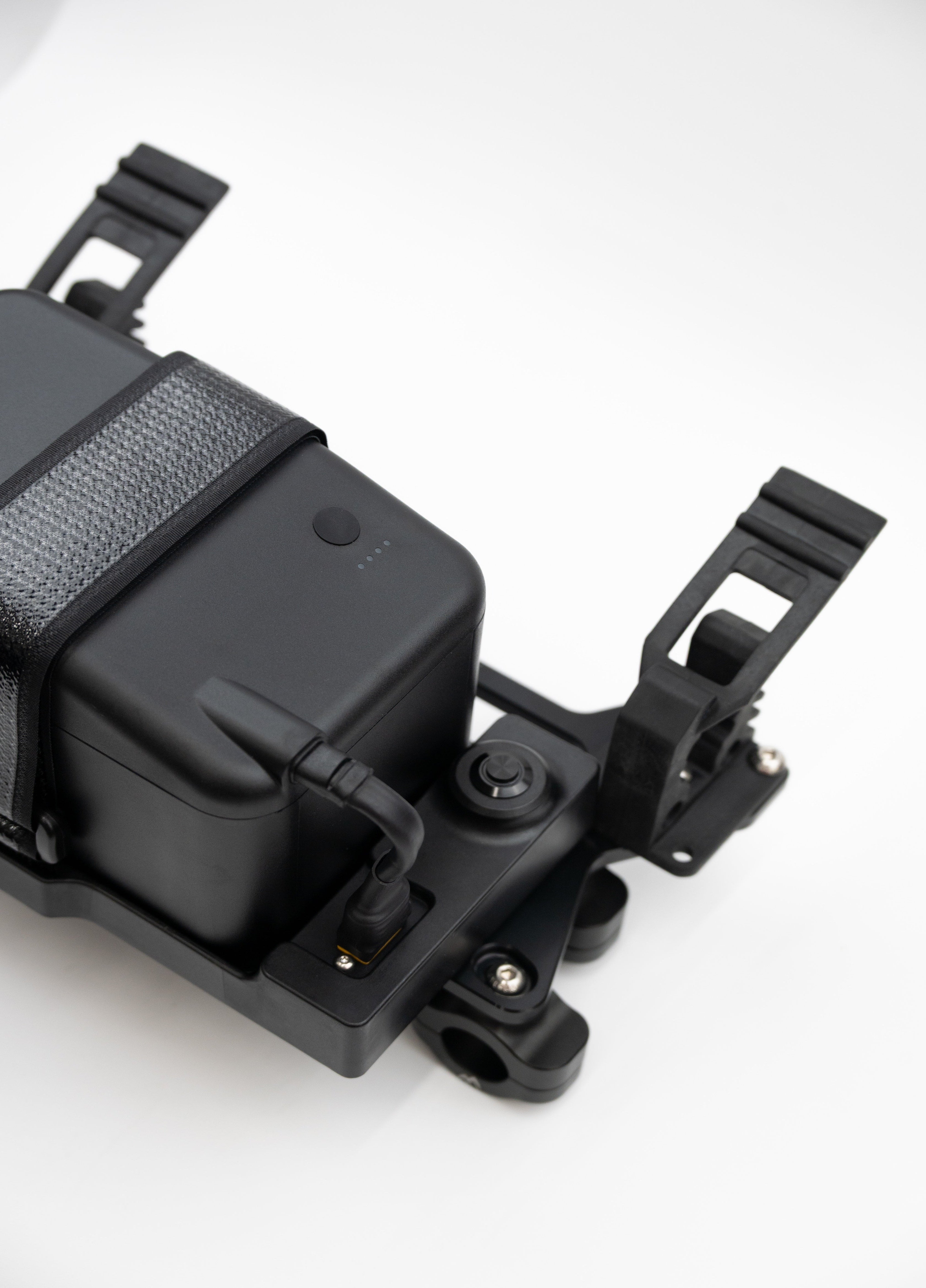

Custom SAR Throttle + Battery Tray
Spare Drive Gear
Hydraulic Brake

Elevate is a removable, lightweight, and powerful motor. With this kit, we have adapted Elevate for Search and Rescue applications. Custom mounting brackets are designed to fit the Cascade Rescue Terra Tamer wheel and the drive unit ships with software settings tuned for SAR use.

Notes:

  • Elevate SAR edition is currently a beta-stage product.
  • It has shown reasonable reliability in drier climates and proven highly valuable in speeding up recoveries, reducing the number of people needed for a recovery, and reducing rescuer fatigue
  • The drive unit is curretly sealed to a level that is capable of operating in light rain but is not yet sealed for heavy rain or submersion
  • We are actively working on improving the water sealing of the system
  • We offer full warranty support for all uses as field learnings are valuable for continued development
  • We recommend careful consideration when using this system for live rescues in very wet conditions

Questions? Fill out this form: https://form.jotform.com/241936685467169

Search and Rescue Kit Contents

Elevate SAR kit fits the Cascade Rescue Terra Tamer Wheel.

The SAR Kit contains:

- 1 Elevate System (1 drive unit, 1 battery*, 1 throttle)

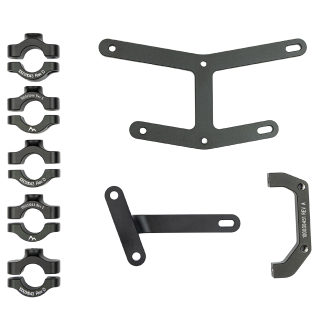

- Dedicated SAR mounting brackets with 10+ custom CNC machined parts, made to fit the Cascade Rescue Terra Tamer Wheel
- Spare Quick Connect Studs

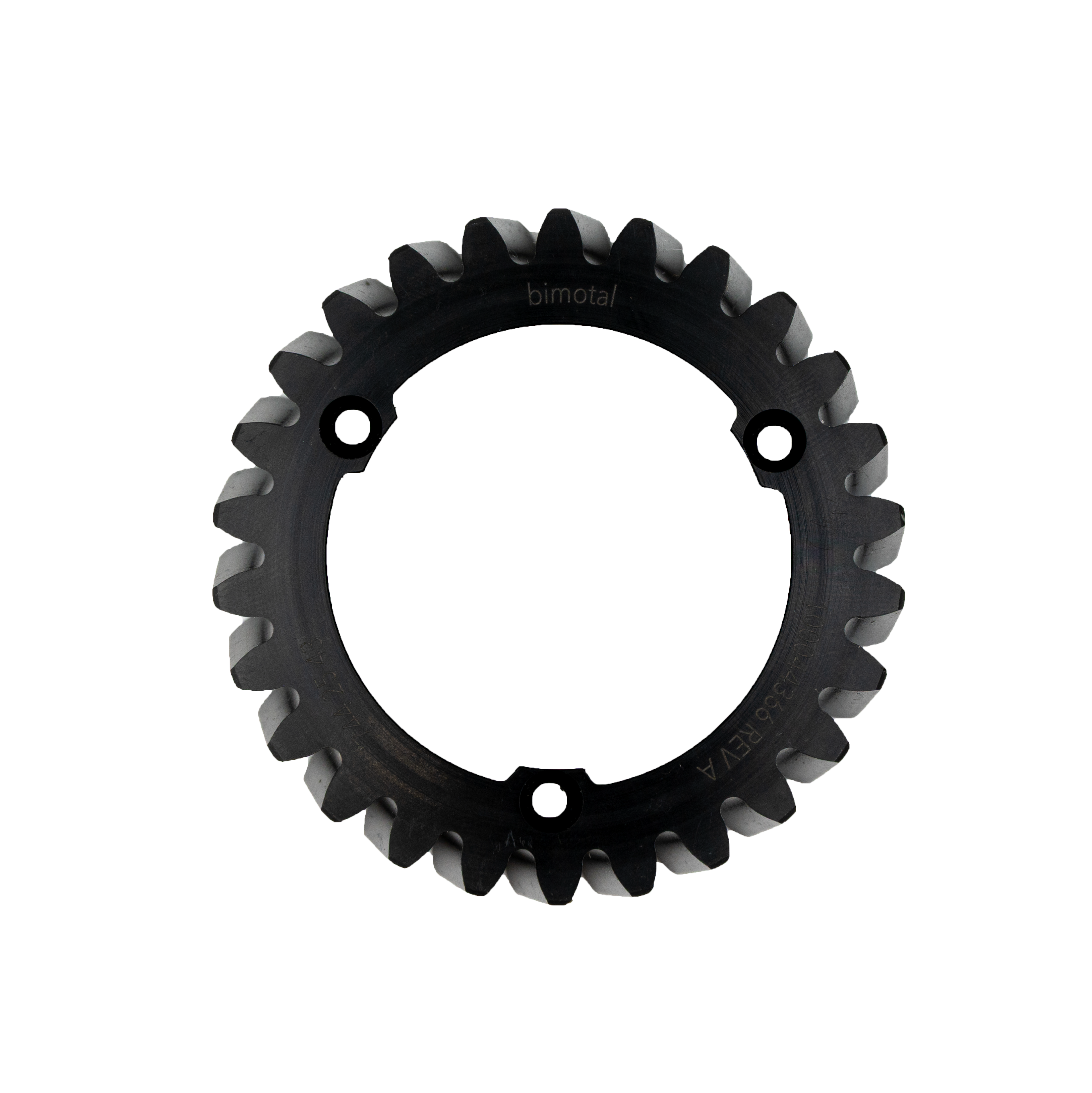

- Spare Drive Gear (27 grams, carry in field)
- Throttle Extension

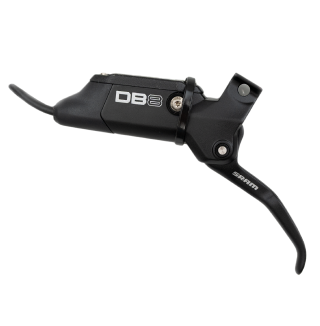

- SRAM DB8 Hydraulic Disc Brake Lever and Caliper
- Shims for for Mounting Brake Lever to 3/4" Hand Hold Tubing
- Custom Software Tune for Higher Torque and 5mph Speed Limit

*Option to purchase a second SAR kit battery is available.

Order Details

We are building in batches and delivering within 4-6 week windows to North America.

Key Features

Compatible - With the Terra Tamer you have on hand

Removable - For easy transport and service

Ultra Light - Don't get weighed down


High Torque - Go further, with less effort

Modular - Move from litter to litter

Why Choose Elevate SAR

Go farther, reduce the load, and evacuate 3x faster. With Elevate SAR, every minute counts.

Fewer Volunteers per Litter

Fewer Volunteers per Litter

Reduces the number of rescuers needed to move a loaded litter, freeing personnel for other teams.

3x Faster Evacuations

3x Faster Evacuations

Powered assist significantly increases litter team speed, helping teams reach injured patients sooner and evacuate more quickly.

High Torque, Ultra-Light Assist

High Torque, Ultra-Light Assist

Elevate delivers high torque at low speeds, making steep climbs and heavy loads easier to manage.

Haul Rescue Gear

Haul Rescue Gear

Carry medical gear, ropes, and technical equipment directly on the litter, reducing separate haul loads.

Easy to Remove for Transport

Easy to Remove for Transport

Elevate detaches easily so teams can pack, store, or transport the litter without added bulk.

Built for Real SAR Operations

Built for Real SAR Operations

Purpose-built for SAR with custom firmware, oversized braking, a no-drag free-wheel clutch, and a modular motor refined through real-world field use.

Quick and Easy to Remove

Add Elevate for missions that require longer distances, heavier loads, or steeper climbs.

Remove Elevate for easy litter pack down and transportation.

Read more

It's removable— it clicks on and off in seconds

Litter-to-Litter Sharing

For teams and counties with multiple Search and Rescue litters, get a second mount kit and to easily move the drive unit and battery pack from litter-to-litter.

Modularity and removability enables sharing.

Read more

Move it from litter to litter

Powerful and Compact

Similar size to an iPhone. Feel like you’re defying physics as your Elevated search and rescue litter pulls you up trails.

Read more
70 Nm
of torque
3.3 lbs/1.50 kg
for the drive unit
3.4 lbs/1.55 kg
for the battery
400 Watts
of power at the wheel
Light yet mighty

Light yet mighty

What’s included in the SAR kit?

The Elevate Search and Rescue (SAR) kit is an electric assist system for Search and Rescue Litters. The kit includes the drive unit, one battery pack, custom mounting hardware, a SAR-specific throttle and wiring harness, custom SAR software. A second battery pack is available as an option. You supply the Cascade Rescue Terra Tamer wheel and litter. Questions? Submit a SAR inquiry.

Read more
Drive unit
Complete Elevate System
Motor, battery pack, throttle, charger
Mounting Equipment
Custom CNC machined SAR mounting brackets, spare drive gear, SRAM brake caliper, custom SAR throttle harness
Custom SAR Software
Higher torque and speed limit: 70Nm torque, 5mph speed limit
Optional Second Battery Pack
300Wh capacity with LED charge state indicator

COMPATIBILITY

Does your SAR team have a Cascade Terra Tamer?

Confirm that your litter is in good shape, and that the brake mounts are true and match the images shown.

Refer to the images below and contact us with further questions.

Cascade Rescue Terra Tamer
Terra Tamer Wheel

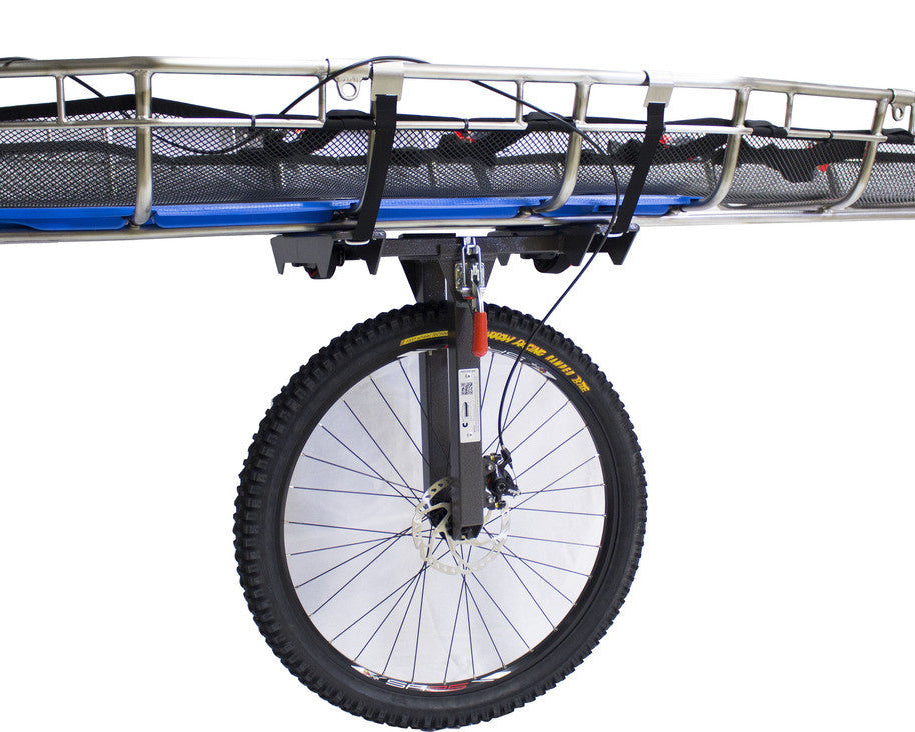

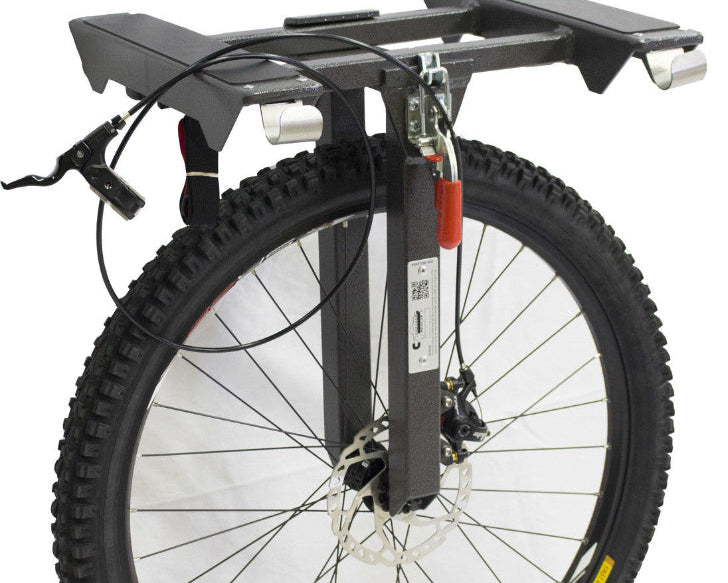

Advance Series Trail Technician
Advance Series Trail Technician

Elevate SAR Specs

Elevate SAR Kit Specifications
Elevate SAR Kit Specifications
  • Top Speed
  • 5 mph

  • Continuous Torque
  • 70 NM

  • Burst Torque
  • Up to 100 NM

  • Power at the Wheel
  • 400 watts

  • Battery Capacity
  • 300 Watt hours

  • Battery Weight
  • 3.4 lbs (1.55 kg)

  • Drive Unit Weight:
  • 3.3 lbs (1.50 kg)
Typical Range per Charge
Typical Range per Charge
  • Climbing Capacity
  • 2000 feet with 200-lb payload, assisted

  • Typical Range
  • up to 10 miles assisted

  • Trail Use Duration
  • 2-5 hours

  • Typical Charge Time
  • 1.5 hours
The wheel team was able to move nearly as fast as hasty teams instead of being three times slower. Everyone was impressed by the powered wheel’s performance.
With a 200 lb load, we climbed 200 feet of elevation over three miles using only two rescuers on the litter.
A very positive day for the e-litter — the system performed exceptionally well on steep, demanding terrain.
The assist provided is worth about four personnel over the course of an operation.
Two team members can manage the litter in most environments without a haul team.
We’re able to operate with fewer people while moving faster and reducing rescuer fatigue.
The system is completely transparent — there’s no drag when it’s not engaged.
We frequently work with other agencies, and handoffs to fire teams take about a minute of instruction.
It integrates seamlessly into our operations and works best once loaded with medical gear.
As the first team to use the Elevate Litter system, I can say it’s something we can’t live without.
It’s become an essential part of how we conduct SAR operations.
The oversized brake rotor and hydraulic brake make it easy to apply maximum braking with a single finger.
Compared to traditional litter brakes, the braking control is a major improvement.
The system has gone through multiple revisions based on our feedback — the latest version is the best yet.
